Transaxle Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.
- Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)

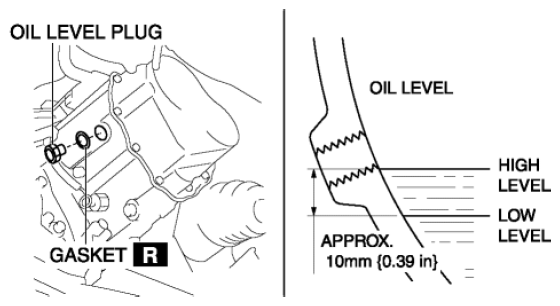

- Remove the oil level plug and gasket.
- Verify that the transaxle oil is near the brim of the plug port.
- If the oil level is lower than the low level, add the specified amount and type of transaxle oil through the oil level plug hole.
Manual transaxle oil grade
- API Service GL-4 or GL-5
Manual transaxle oil viscosity
- Any temperature: SAE 75W-90
- Above 10 °C {50 °F}: SAE 80W-90
- If the oil level is lower than the low level, add the specified amount and type of transaxle oil through the oil level plug hole.
- Install a new gasket and the oil level plug.
Tightening torque
- 39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
- Install the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)
