No.4 Engine Mount Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST  using the following procedure.
    CAUTION:
    • Refer to the SST instruction manual for the basic handing procedure.

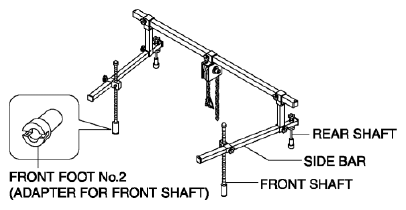

      Fig 1: Identifying Front Foot No.2 (Adapter For Front Shaft), Front Shaft, Side Bar And Rear Shaft
      G08142682

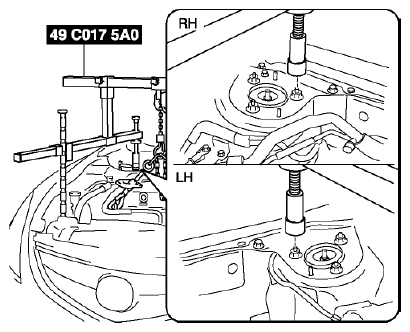

    1. As shown in the figure, set the rear shafts of the SST  to the left and right shock absorber installation nut.
      Fig 2: Setting Rear Shafts Of SST To Left And Right Shock Absorber Installation Nut
      G08142683

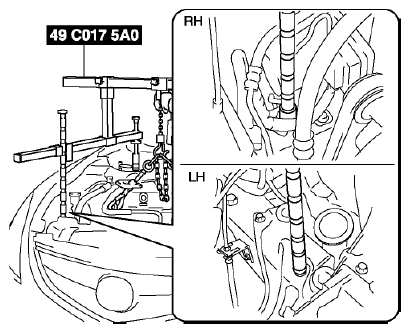

    2. Install front foot No.2 to the left/right front shaft of the SST  , then align the groove of the front shaft of the SST  with the folded up part of the vehicle as shown in the figure.
      Fig 3: Front Foot No.2 To Left/Right Front Shaft Of SST
      G08142684
    3. Adjust the positions of the SST  side bars so that they are the same height (left and right) and horizontal.
    4. Make sure each joint is securely tightened.

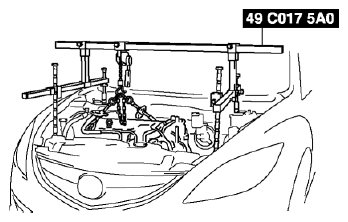

  2. Support the engine using the SST  .
    Fig 4: Supporting Engine Using SST
    G08142685
  3. Remove the No.4 engine mount rubber and bracket.
