Pilot Bearing Inspection
WARNING: This page is about a different variant/trim than selected.
- Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the clutch unit until the pilot bearing is in a condition whereby it can be inspected. (See CLUTCH UNIT REMOVAL/INSTALLATION .)

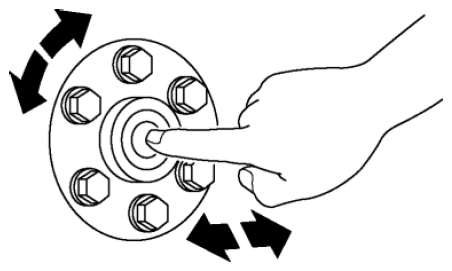

- Without removing the pilot bearing, turn the bearing while applying force in the axial direction.
- If there is any malfunction, replace the pilot bearing. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
