Clutch Disc Inspection

WARNING: This page is about a different variant/trim than selected.

Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the clutch disc. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
Using vernier calipers, measure the thickness of the lining at a rivet head on both sides.

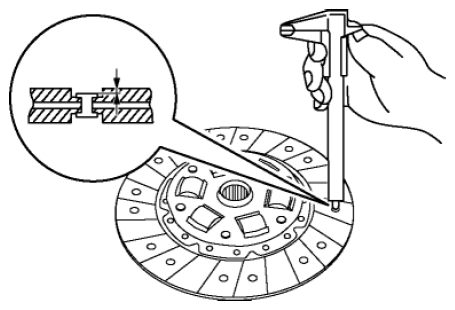

Fig 1: Measuring Thickness Of Lining At Rivet Head On Both Sides Using Vernier Calipers
- If it less than the minimum specification, replace the clutch disc. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  Minimum clutch disc thickness
- 0.3 mm {0.01 in}
Measure the clutch disc runout using a dial indicator.

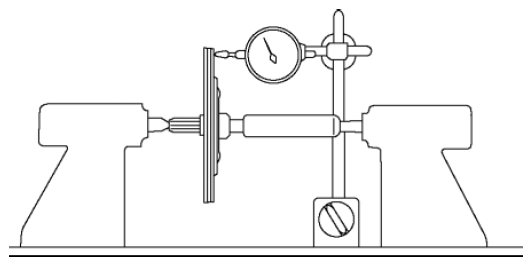

Fig 2: Measuring Clutch Disc Runout Using Dial Indicator
- If it exceeds the maximum specification, replace the clutch disc. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  Maximum clutch disc runout
- 0.7 mm {0.03 in}
