Trunk Lid Trim Removal/Installation

  1. Remove the recess. (See RECESS REMOVAL/INSTALLATION )
  2. Remove the fasteners, then remove the trunk lid trim.

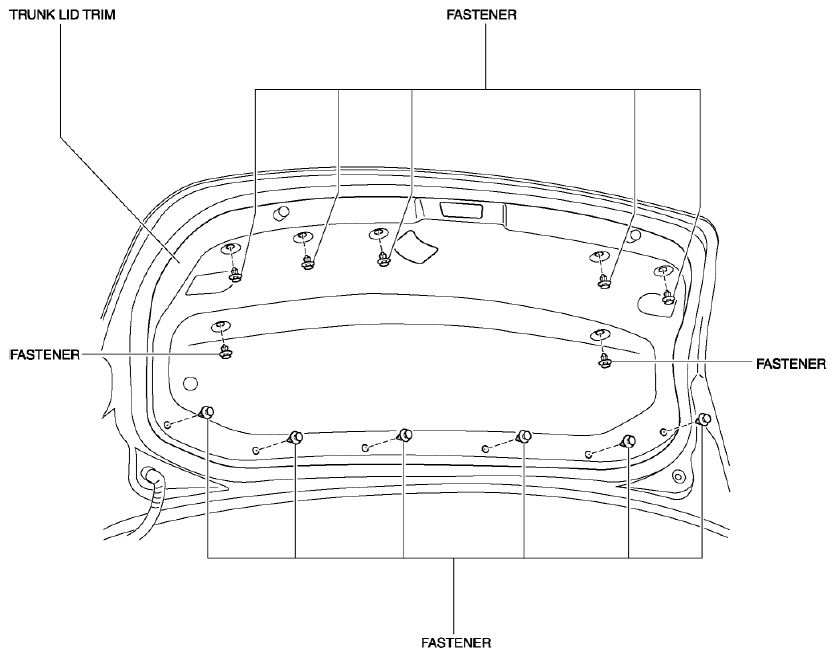

    Fig 1: Identifying Trunk Lid Trim And Fasteners
    G08144772
  3. Install in the reverse order of removal.
