Inner Garnish Removal/Installation

  1. Disconnect the negative battery cable.
  2. Pull the inner garnish in the direction of the arrow shown in the figure and remove it while detaching clips and tab.

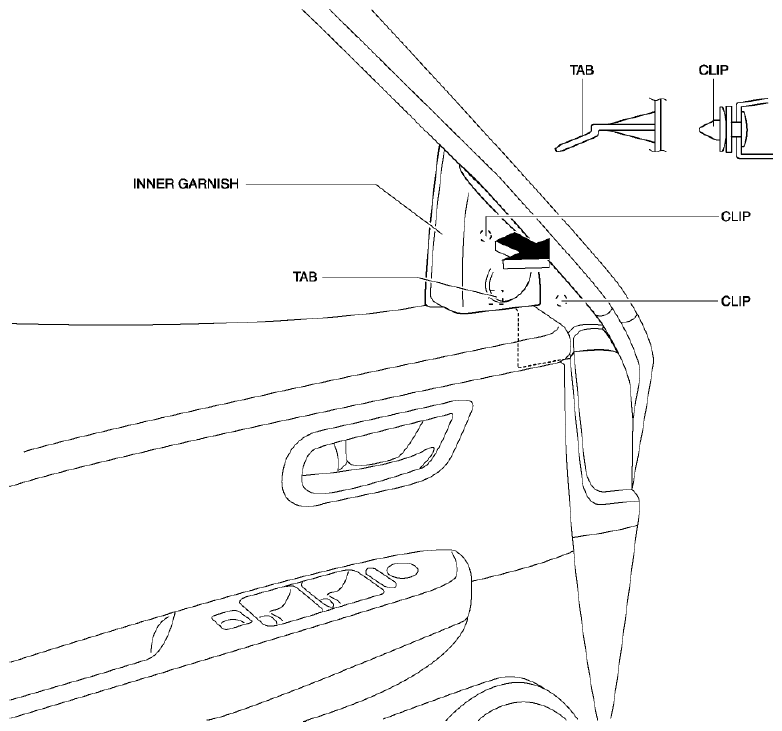

    Fig 1: Inner Garnish Mounting Components
    G08144752
  3. Disconnect the front tweeter connector. (Vehicles with tweeter)
  4. Install in the reverse order of removal.
