Headliner Removal/Installation

Disconnect the negative battery cable.
Partially peel back the seaming welt.
Remove the rain sensor cover. (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION )
Disconnect the rain sensor connector. (Vehicles auto light/wiper system)
Remove the following parts:
1. Sunroof seaming welt (vehicles with sunroof system)
2. A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
5. B-pillar lower trims (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
6. Front seat belt upper anchor installation bolts (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
7. B-pillar upper trims (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
8. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
9. Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
10. C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
Disconnect the auto-dimming mirror connector. (vehicles with auto-dimming mirror)
Remove the sunvisors. (See SUNVISOR REMOVAL/INSTALLATION )
Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION )
Remove the assist handle. (See ASSIST HANDLE REMOVAL/INSTALLATION )
Disconnect the roof harness connector, remove the clip, and remove the connector.
Remove the fasteners.

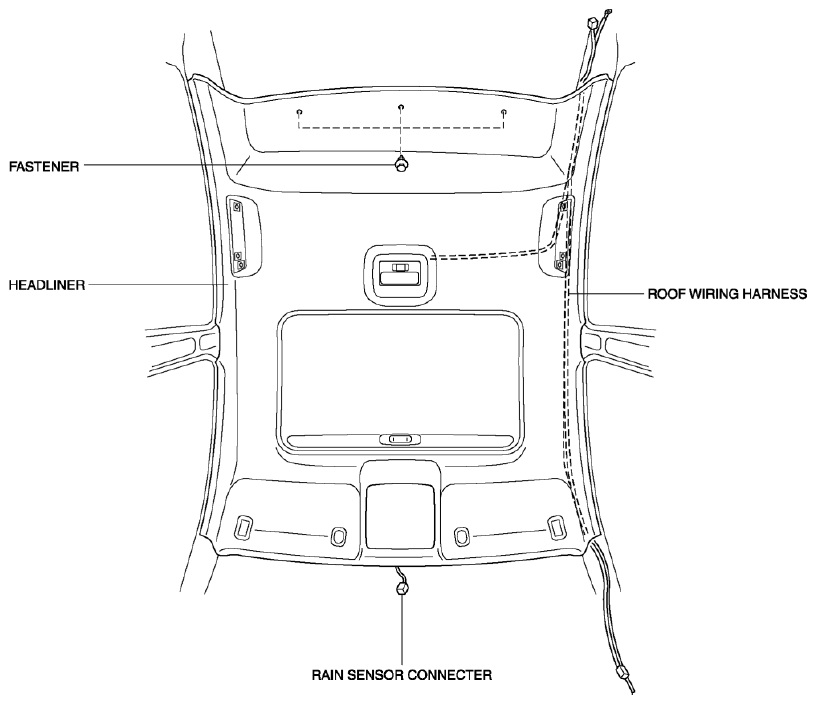

Fig 1: Identifying Roof Harness Connector And Fasteners
Remove the retainer holding the roof panel and remove the headliner.

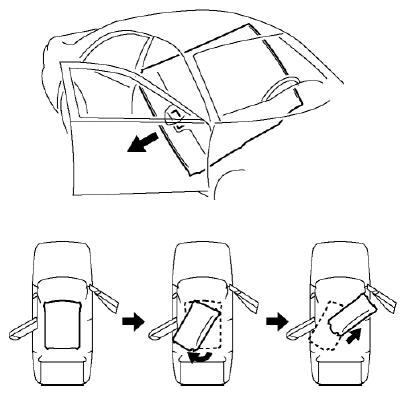

Take the headliner off from the passenger-side door opening.

Fig 2: Removing Retainer Holding Roof Panel
Install in the reverse order of removal.
