Front Door Trim Disassembly/Assembly: Driver-Side

  1. Disassemble in the order shown in the figure.
  2. Assemble in the reverse order of disassemble.

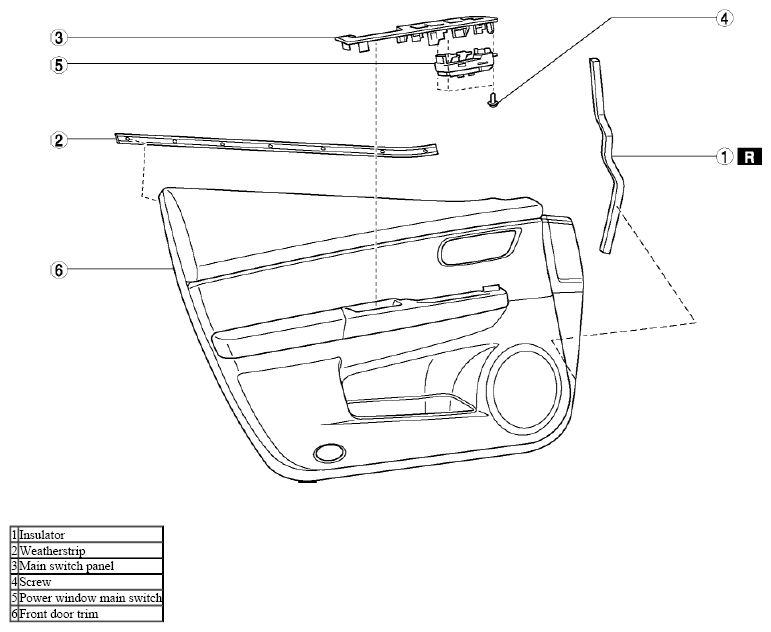

    Fig 1: Identifying Front Door Trim Components (Driver-Side)
    G08144765
