Trunk Lid Lock Striker Removal/Installation

  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid lock striker.

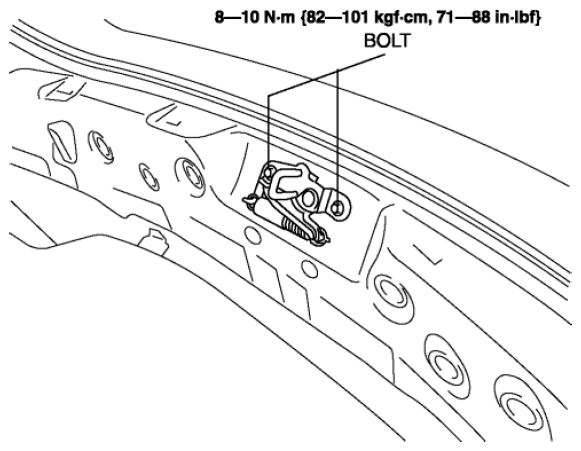

    Fig 1: Trunk Lid Lock Striker And Bolts
    G08144564
  3. Install in the reverse order of removal.
  4. Adjust the liftgate lock striker. (See TRUNK LID ADJUSTMENT .)
