Home >> Mazda >> 2012 >> 6 i Sport, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Hood Release Cable Removal/Installation >> Grommet Removal Note

Grommet Removal Note

  1. Remove the grommet in the direction of the arrow (2) shown in the figure while pressing the grommet tabs in the direction of the arrow (1).

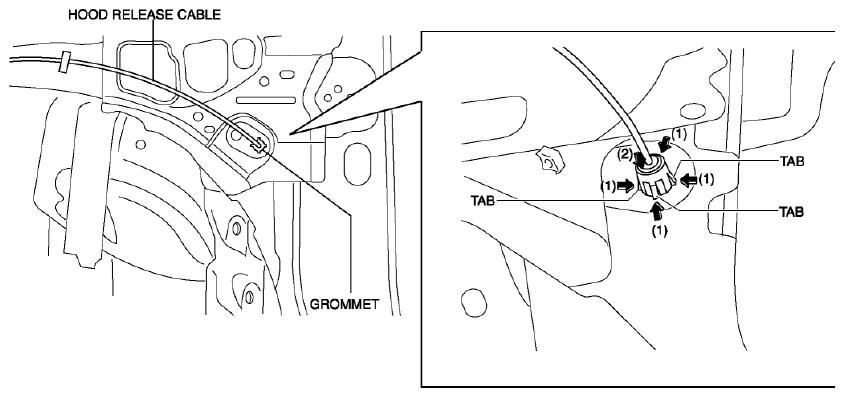

    Fig 1: Identifying Grommet Tabs
    G08144505
