Guide Disassembly Note

  1. Place an alignment mark on the guide pin and flame.

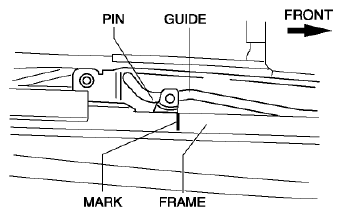

    Fig 1: Identifying Alignment Mark On Guide Pin And Flame
    G08144650
  2. Slide the guide to the rear of the sunroof frame, and remove the guide and decoration link as a single unit.

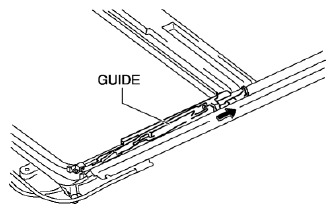

    Fig 2: Sliding Guide To Rear Of Sunroof Frame
    G08144651
