Reduction Brake Disassembly/Assembly: Notes

  1. Perform the preinspection before disassembly.

    (See REDUCTION BRAKE PREINSPECTION .)

  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

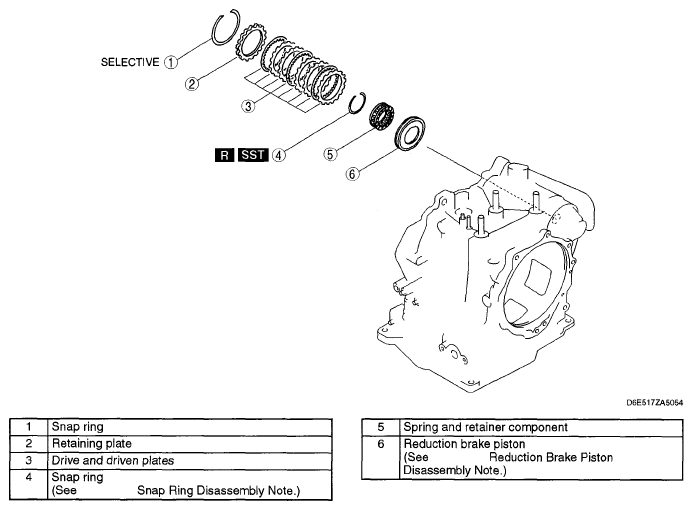

    Fig 1: Exploded View Of Reduction Brake Components
    G05118746Courtesy of MAZDA MOTORS CORP.
