Parking Mechanism Disassembly/Assembly: Notes

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

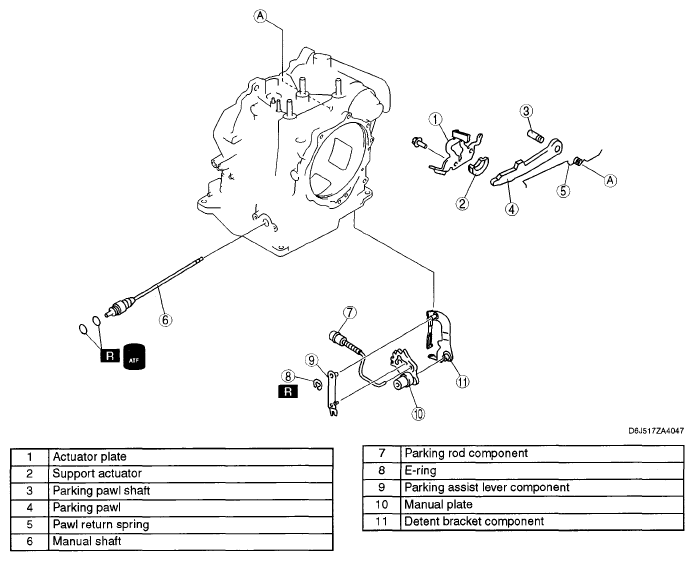

Fig 1: Identifying Parking Mechanism Components

Courtesy of MAZDA MOTORS CORP.
