Direct Clutch Disassembly/Assembly: Notes

1. Perform the preinspection before disassembly. (See DIRECT CLUTCH PREINSPECTION .)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

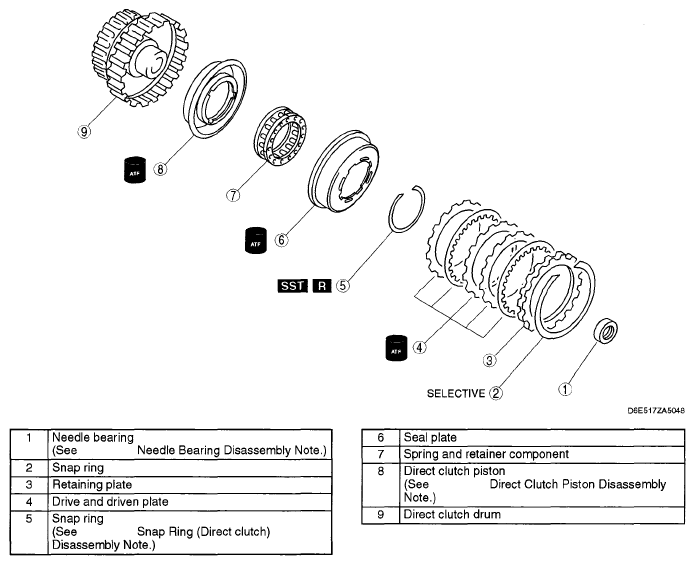

Fig 1: Exploded View Of Direct Clutch Components

Courtesy of MAZDA MOTORS CORP.
