Clutch Component Disassembly/Assembly: Notes

1. Perform the preinspection before disassembly. (See CLUTCH COMPONENT PREINSPECTION .)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

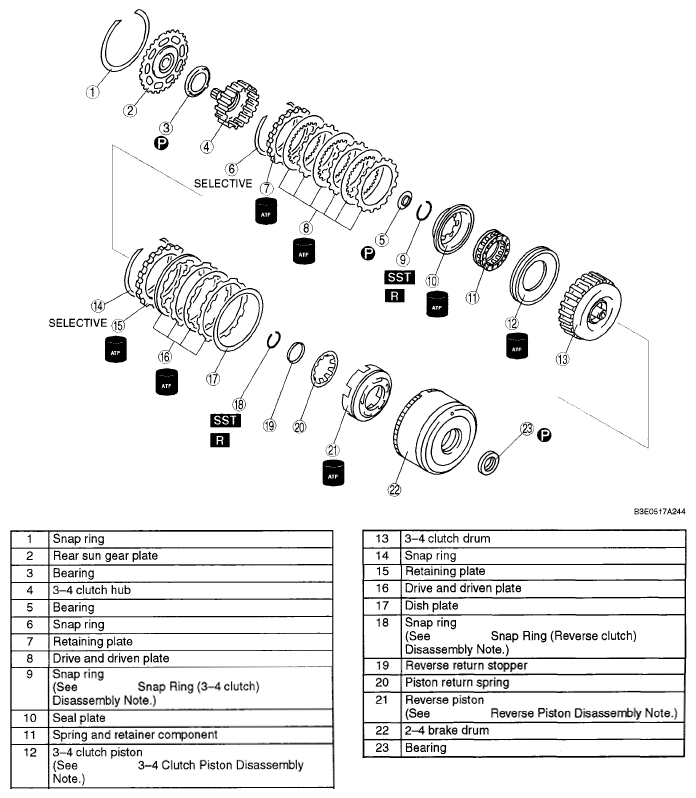

Fig 1: Identifying Clutch Components

Courtesy of MAZDA MOTORS CORP.
