Front Lower Arm Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)

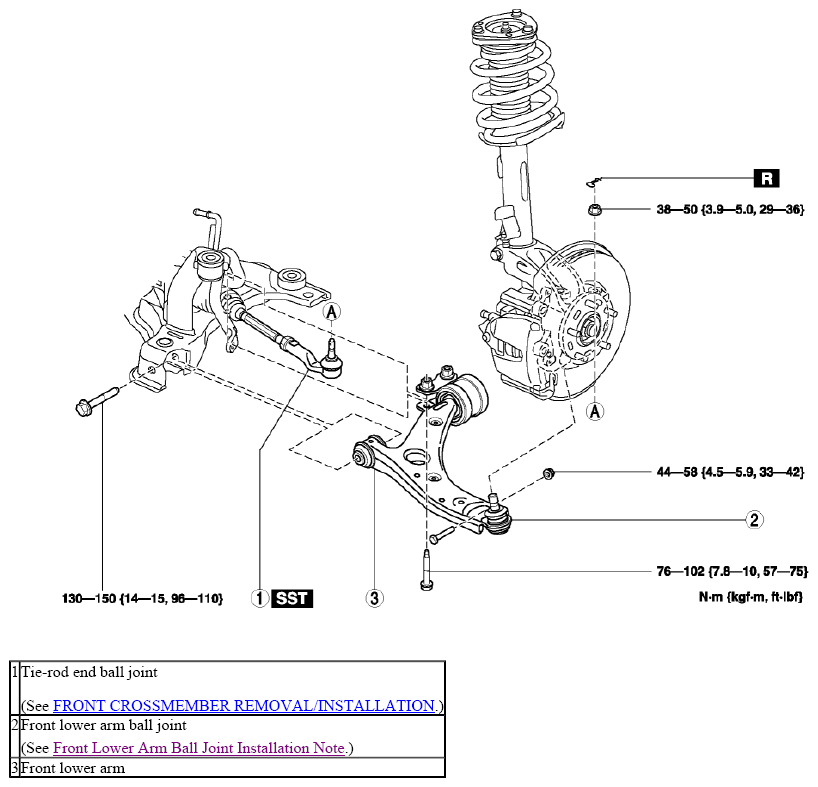

    Fig 1: Front Lower Arm Replacement Components With Torque Specifications
    G08150419
