Horn Inspection

  1. Disconnect the negative battery cable.
  2. Slightly bend back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Remove the horn. (See HORN REMOVAL/INSTALLATION .)
  4. Apply battery positive voltage and connect the ground as shown in the figure and verify the keyless beeper sound operation.

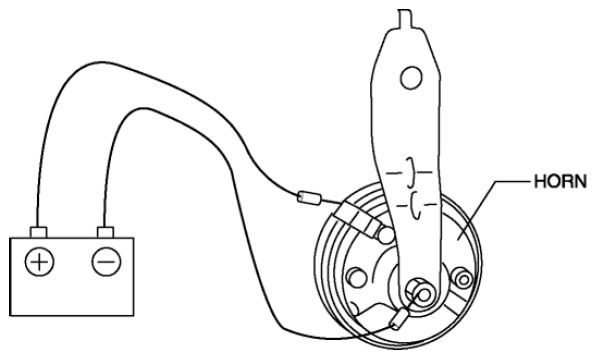

    Fig 1: Energizing Horn
    G08153569
    • If the beep sound cannot be verified, replace the horn.
