Brake Fluid Level Sensor Connector End View

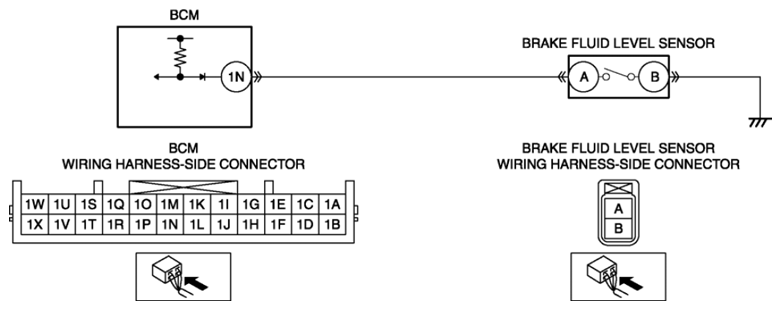

Fig 1: Brake Fluid Level Sensor Connector End View
G08152623Courtesy of MAZDA MOTORS CORP.


Fig 1: Brake Fluid Level Sensor Connector End View
G08150614Courtesy of MAZDA MOTORS CORP.
