Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.

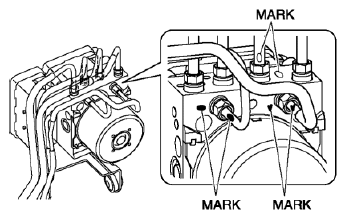

    Fig 1: Placing Alignment Mark On Brake Pipe And DSC HU/CM
    G08150684
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.
