Sunroof Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

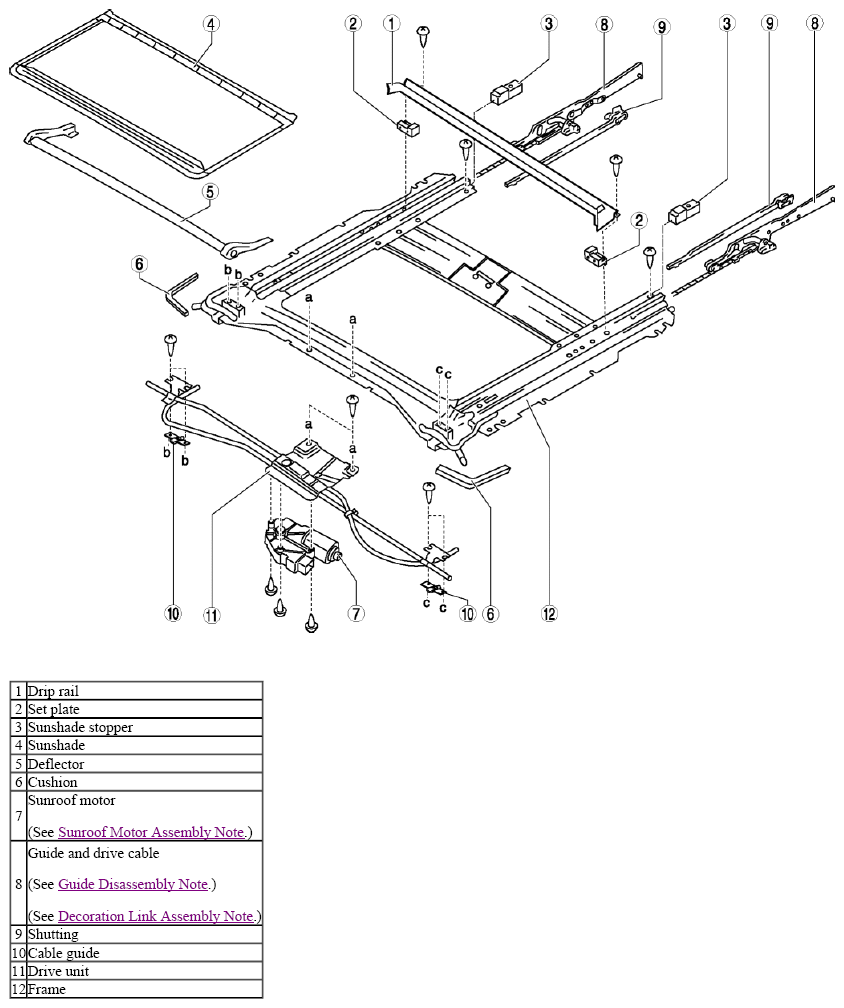

    Fig 1: Exploded View Of Sunroof Unit
    G08153128
  2. Assemble in the reverse order of disassembly.
