Decoration Link Assembly Note

  1. Move the pin to the position shown in the figure.

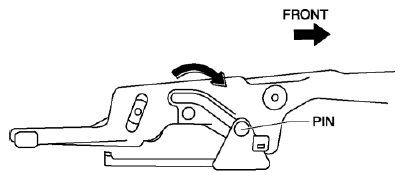

    Fig 1: Moving Decoration Link Pin
    G08153130
  2. Set the guide pin to the decoration link.

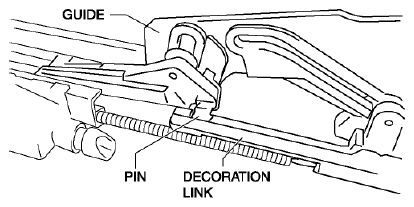

    Fig 2: Identifying Decoration Link, Pin And Guide
    G08153131
