Sunroof Switch Inspection

Disconnect the negative battery cable.
Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the sunroof switch terminals is as indicated in the table.

Fig 1: Sunroof Switch Terminal Identification
- If not as indicated in the table, replace the sunroof switch. (See MAP LIGHT REMOVAL/INSTALLATION .) (See SUNROOF SWITCH REMOVAL/INSTALLATION .)

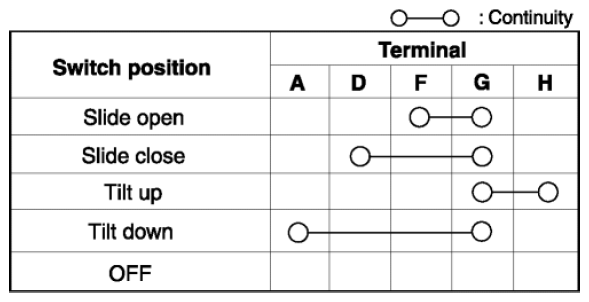

Fig 2: Sunroof Switch Continuity Chart
