Deflector Removal/Installation

  1. Fully open the glass panel.
  2. Disconnect the negative battery cable.
  3. Unhook and remove the deflector.

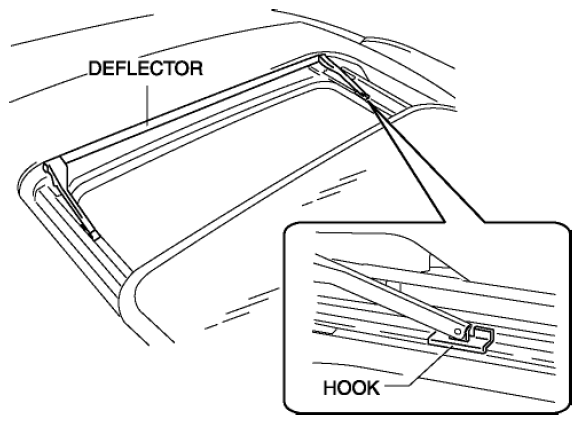

    Fig 1: Identifying Deflector And Hook
    G08153122
  4. Install in the reverse order of removal.
