Lower Panel Removal/Installation: Passenger-side

  1. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    12. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  2. Remove the screws C.

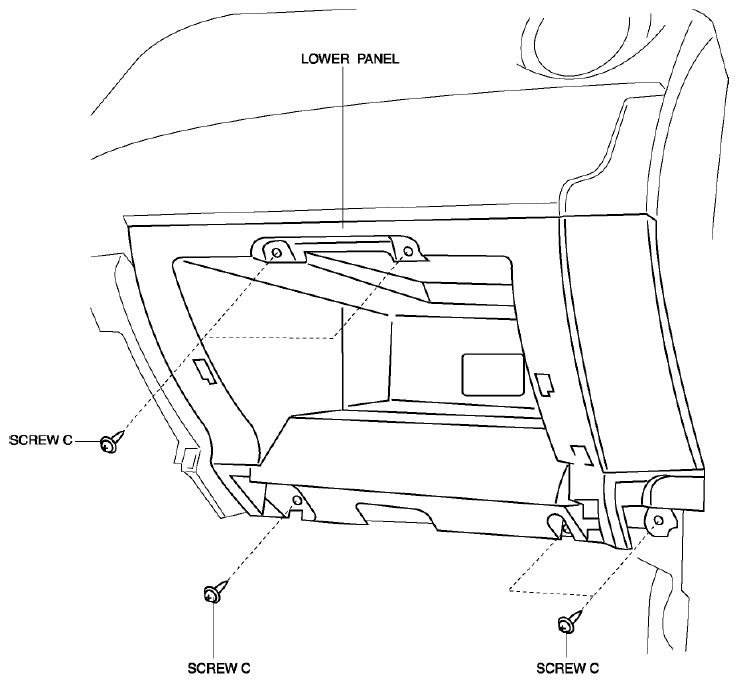

    Fig 1: Identifying Lower Panel And Screws C
    G08153201
  3. Pull the lower panel in the direction of the arrow in the order of (1), (2), (3) and remove the lower panel while detaching the clips D.

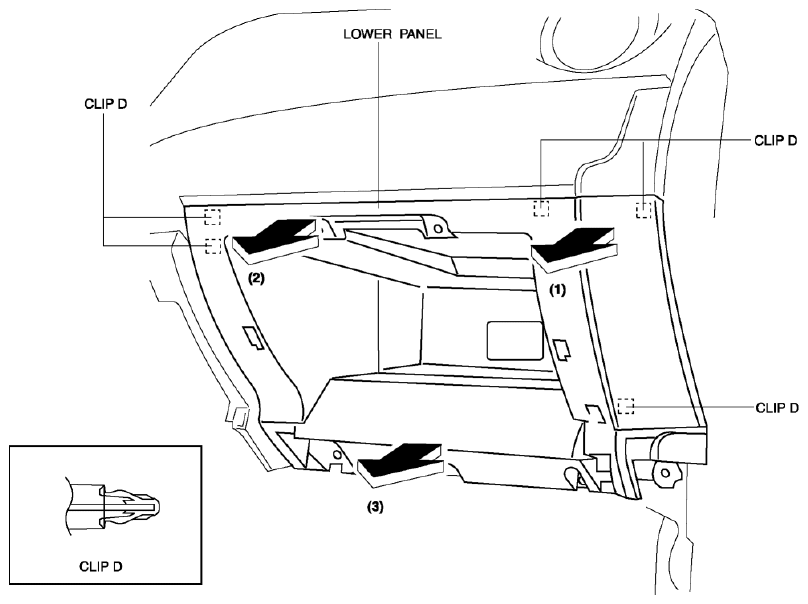

    Fig 2: Pulling Lower Panel
    G08153202
  4. Remove the lower panel.
  5. Install in the reverse order of removal.
