Liftgate Lower Trim Removal/Installation

  1. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
  2. Remove the fasteners A.

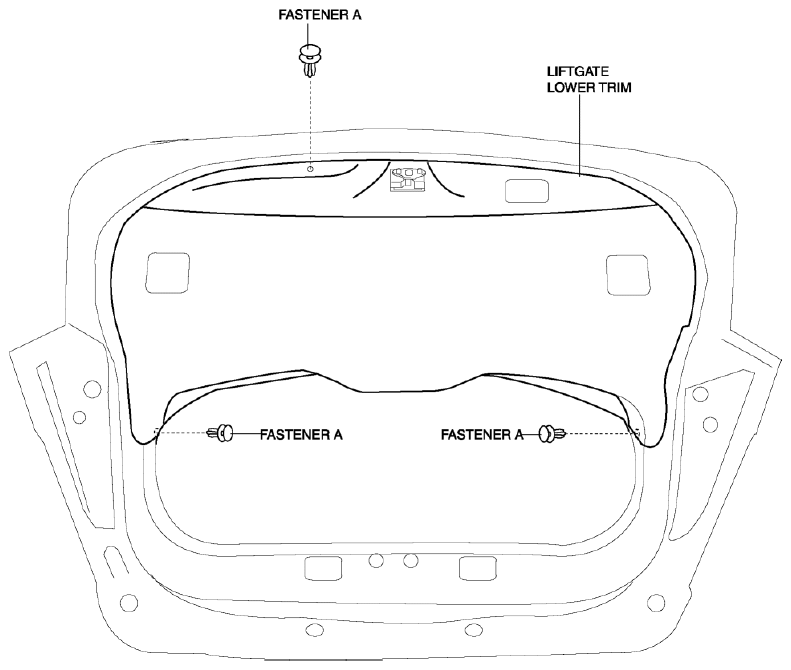

    Fig 1: Identifying Liftgate Lower Trim And Fasteners A
    G08153275
  3. Pull the liftgate lower trim in the direction of arrow (1), (2), (3), (4) while remove the clips B, pins C and clips D.
    Fig 2: Pulling Liftgate Lower Trim
    G08153276
  4. Remove the liftgate lower trim.
  5. Install in the reverse order of removal.
