Assist Handle Removal/Installation

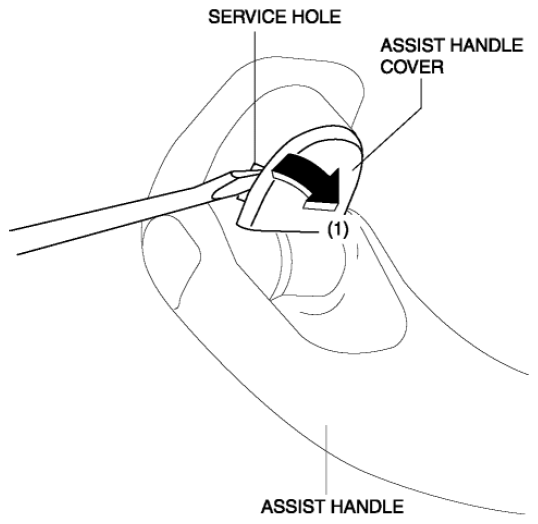

  1. Insert a flathead screwdriver into the service hole and remove the assist handle covers in the direction of arrow (1).
    Fig 1: Removing Assist Handle Covers
    G08153248

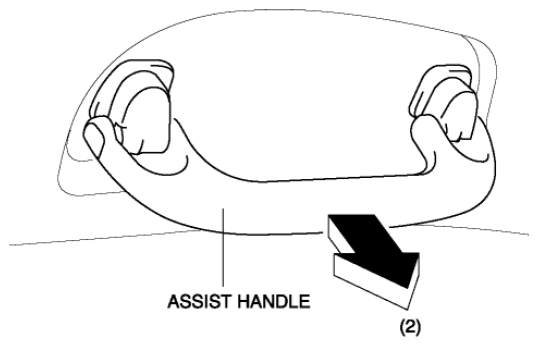

  2. Pull the assist handle in the direction of arrow (2).
    Fig 2: Pulling Assist Handle
    G08153249
  3. Remove the assist handle.
  4. Install in the reverse order of removal.
