Extractor Chamber Removal/Installation
- Remove the following parts:
- Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
- Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)

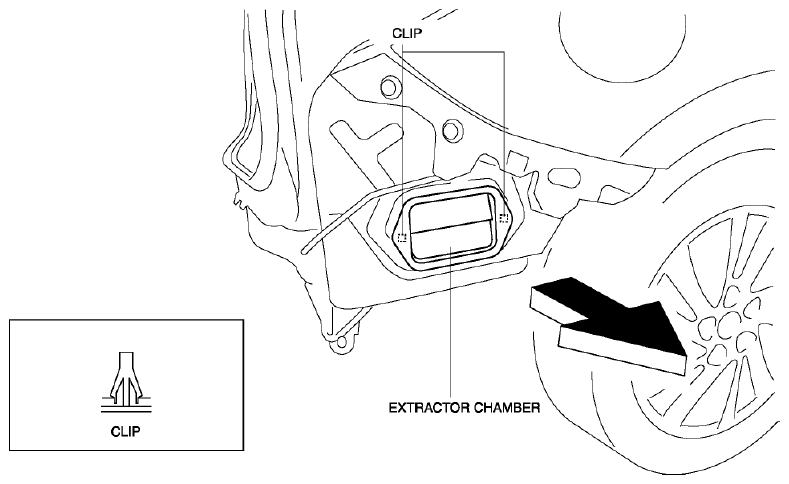

- Pull the extractor chamber in the direction of the arrow shown in the figure while detaching the clips.
- Remove the extractor chamber.
- Install in the reverse order of removal.
