Symptom Troubleshooting [Keyless Entry System]
>>
Keyless Entry System Wiring Diagram
Keyless Entry System Wiring Diagram

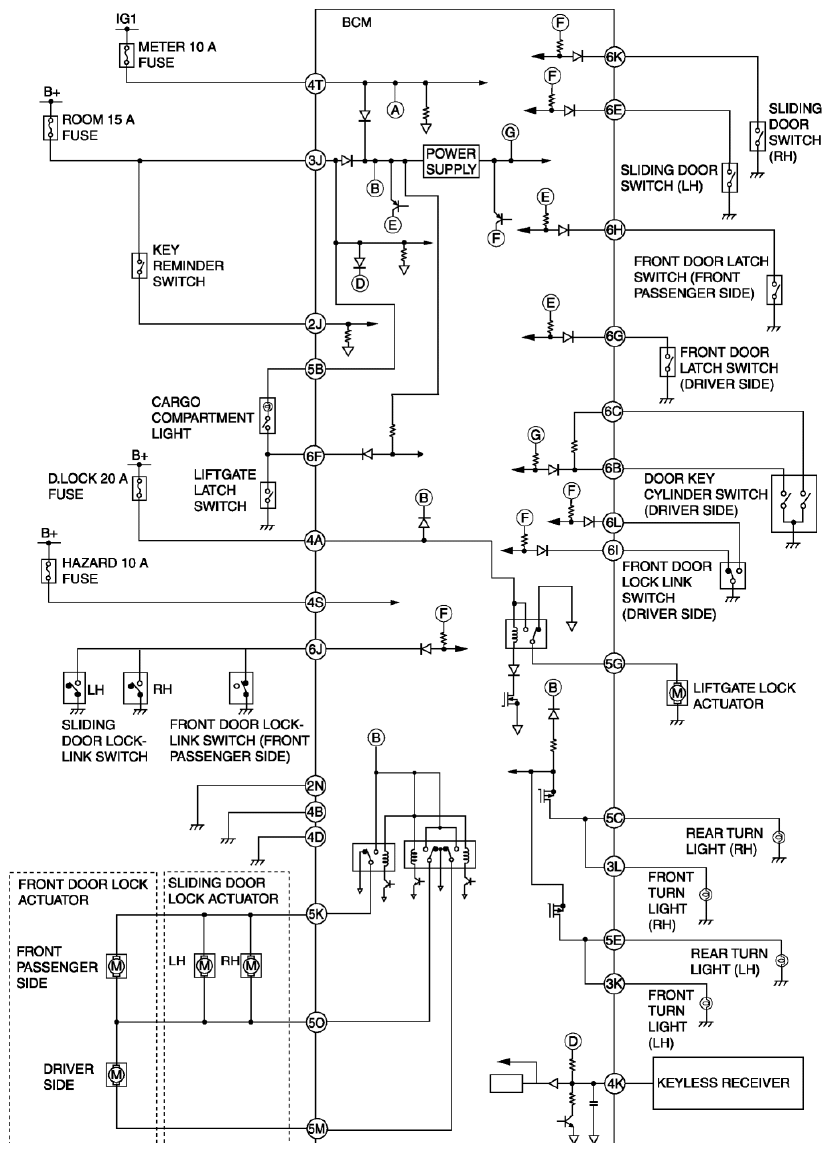

Fig 1: Keyless Entry System - Wiring Diagram
