Combination Switch Disassembly/Assembly

  1. Remove the screws shown in the figures, then pull the light switch, and the wiper and washer switch in the direction of the arrow respectively to remove them.

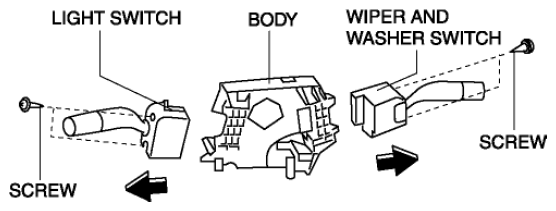

    Fig 1: Identifying Light Switch And Wiper And Washer Switch Pulling Direction And Screws
    G08153348
  2. Assemble in the reverse order of disassembly.
