Tweeter Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the tweeter in the direction of the arrow shown in the figure.

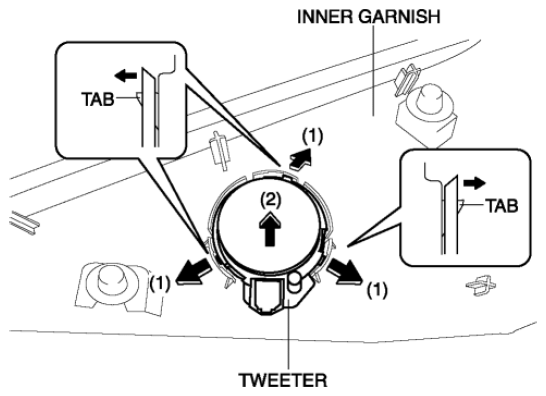

    Fig 1: Identifying Tweeter Removing Direction And Inner Garnish
    G08153442
  4. Install in the reverse order of removal.
