SUNVISOR Removal/Installation

  1. Remove the screw A.

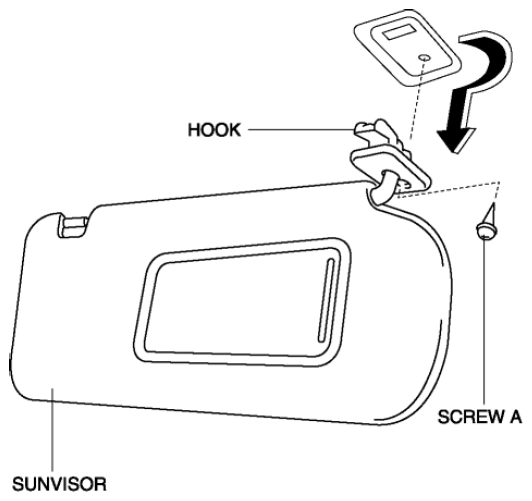

    Fig 1: Rotating Sunvisor
    G08153277
  2. Rotate the sunvisor in the direction of the arrow.
  3. Unhook and remove the sunvisor.
  4. Press the center adaptor tabs in the direction of the arrow (1), then remove the center adaptor in the direction of the arrow (2) shown in the figure.

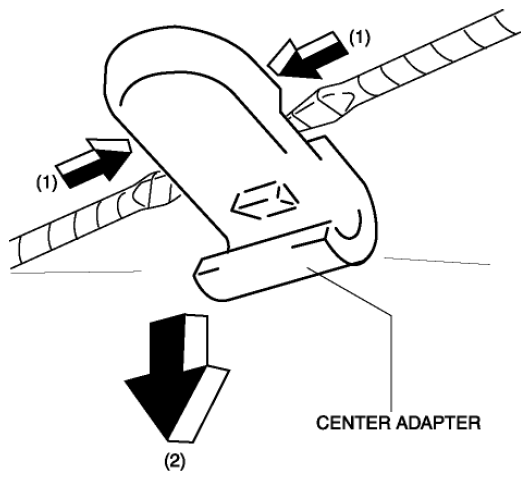

    Fig 2: Pressing Center Adaptor Tabs
    G08153278
  5. Install in the reverse order of removal.
