Secondary Gear And Output Gear Disassembly/Assembly: Notes

1. Remove the following parts. (See AUTOMATIC TRANSAXLE DISASSEMBLY .)
   • Torque converter
   • Oil pump
   • Converter housing
   • Differential
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

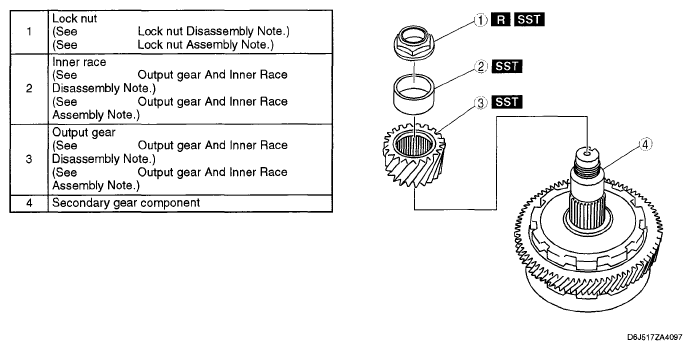

Fig 1: Identifying Secondary Gear And Output Gear

Courtesy of MAZDA MOTORS CORP.
