Lock nut Disassembly Note

  1. Rotate the manual shaft to the P position.
    Fig 1: Rotating Manual Shaft
    G05118762Courtesy of MAZDA MOTORS CORP.
  2. Knock the crimped portion of the locknut outward by using a small chisel and a hammer.
  3. Remove the lock nut.

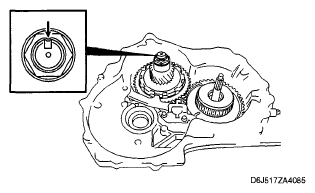

    Fig 2: View Of Lock Nut
    G05118763Courtesy of MAZDA MOTORS CORP.
