Lock nut Assembly Note

Install the following parts. (See AUTOMATIC TRANSAXLE DISASSEMBLY .)
- Pawl return spring
- Parking pawl
- Parking pawl shaft
- Support actuator
- Actuator plate
Rotate the manual shaft to the P position.
Install the locknut.
Tightening torque

100-120 N.m {10.2-12.2 kgf.m, 74-88 ft./lbf}

Fig 1: Rotating Manual Shaft
Courtesy of MAZDA MOTORS CORP.
Stake the locknut.

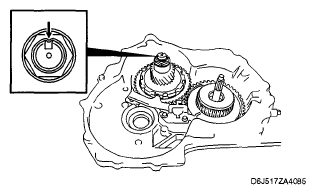

Fig 2: Staking Locknut

G05118768

Courtesy of MAZDA MOTORS CORP.
