Automatic Transaxle - Overhaul (FS5A-El)
>>
Primary Gear Disassembly/Assembly
>>
Bearing Disassembly Note
Bearing Disassembly Note
Remove the bearing from the primary gear using the
SSTs
and suitable plate.

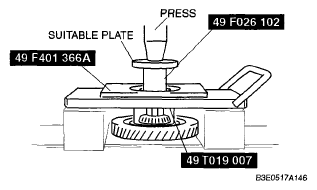

Fig 1: Removing Bearing From Primary Gear Using SST
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
