Assembly Procedure

  1. Install the manual plate to the detent bracket component.
  2. Install the parking assist lever component to the detent bracket component and the manual plate.

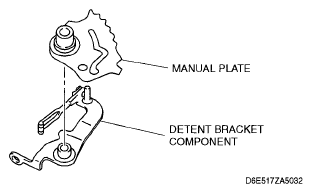

    Fig 1: View Of Manual Plate And Detent Bracket Component
    G05118758Courtesy of MAZDA MOTORS CORP.
  3. Install the E-ring.

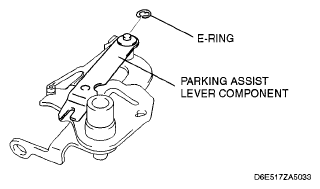

    Fig 2: View Of E-Ring
    G05118759Courtesy of MAZDA MOTORS CORP.
  4. Install the parking rod component.

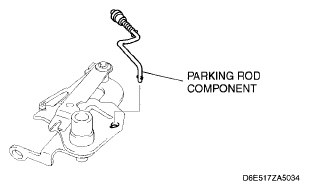

Fig 3: View Of Parking Rod Component
G05118760Courtesy of MAZDA MOTORS CORP.
