Needle Bearing Disassembly Note

  1. Remove the needle bearing using the SST  as shown in the figure.

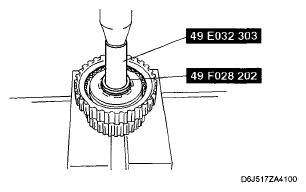

    Fig 1: Removing Needle Bearing Using SST
    G05118734Courtesy of MAZDA MOTORS CORP.
