Differential Disassembly

  1. Perform the preinspeciton before disassembly. (See .)
  2. Disassemble in the order indicated in the table.

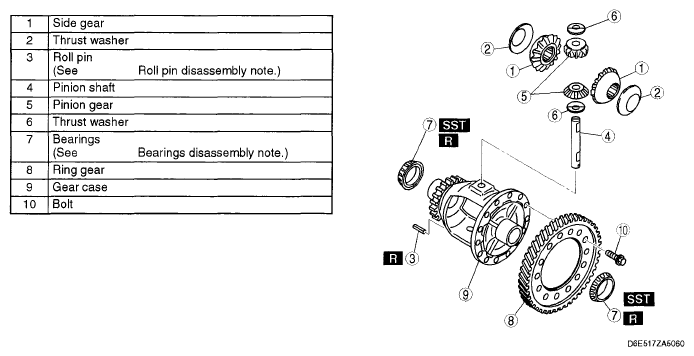

Fig 1: Identifying Differential Assembly Components
G05118823Courtesy of MAZDA MOTORS CORP.
