Oil Pump Disassembly/Assembly

  1. Perform the preinspection before disassembly. (See OIL PUMP PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

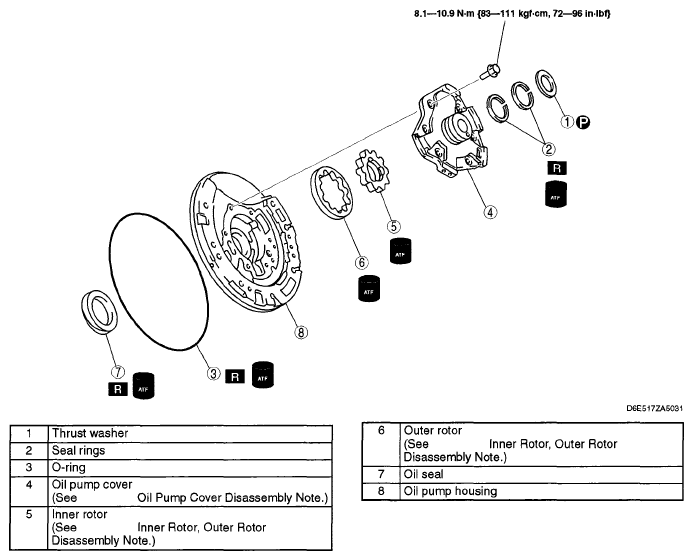

Fig 1: Exploded View Of Oil Pump Components
G05118667Courtesy of MAZDA MOTORS CORP.
