Second-Row Seat Belt Removal/Installation

CAUTION:
  • The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolt A.

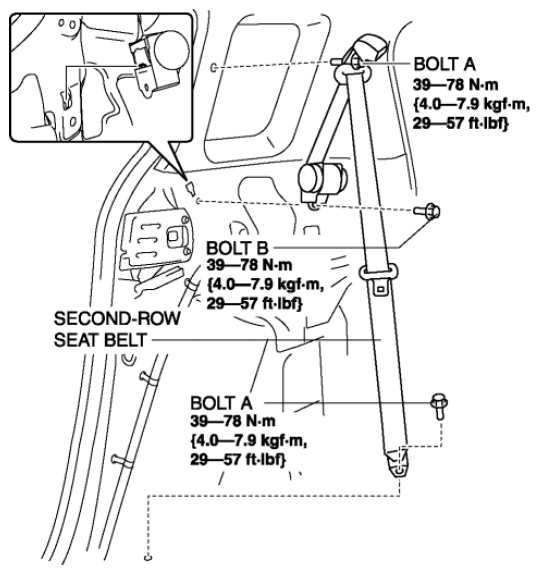

    Fig 1: Second-Row Seat Belt And Bolts With Torque Specifications
    G08152552
  4. Remove the bolt B.
  5. Remove the second-row seat belt.
  6. Install in the reverse order of removal.
