Information Display Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  4. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)
  5. Remove the screws.

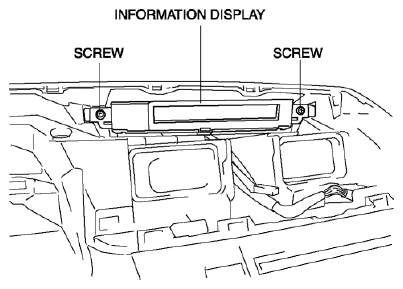

    Fig 1: Information Display And Screws
    G08153570
  6. Press the instrument cluster in the direction of the arrow shown in the figure while avoiding the tabs and pull out it.

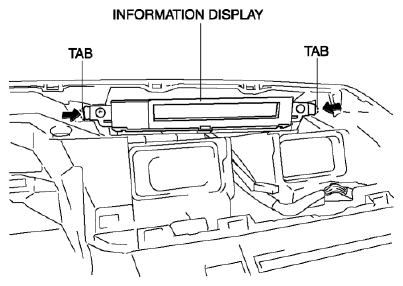

    Fig 2: Information Display Tabs Pressing Direction
    G08153571
  7. Disconnect the connector.

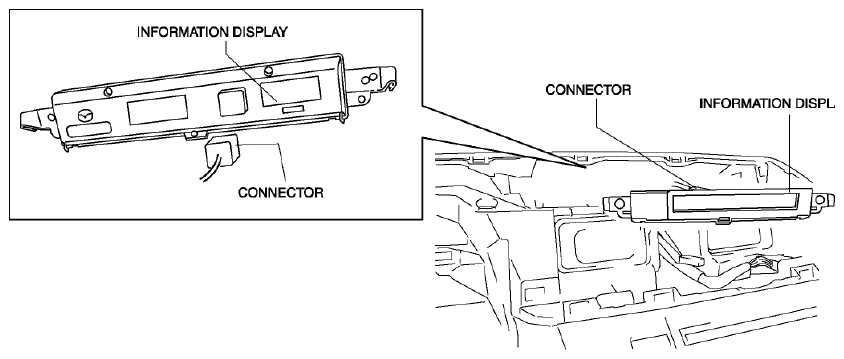

    Fig 3: Information Display And Connector
    G08153572
  8. Remove the information display.
  9. Install in the reverse order of removal.
