Side Panel Removal/Installation

  1. Pull the side panel in the direction of the arrow (1) shown in the figure, then remove the hooks A.
    Fig 1: Pulling Side Panel
    G08153209
    CAUTION:
    • When pulling out the side panel, be careful not to damage the tabs B.
  2. Pull the side panel in the direction of the arrow (2) shown in the figure, while detaching the tabs B.

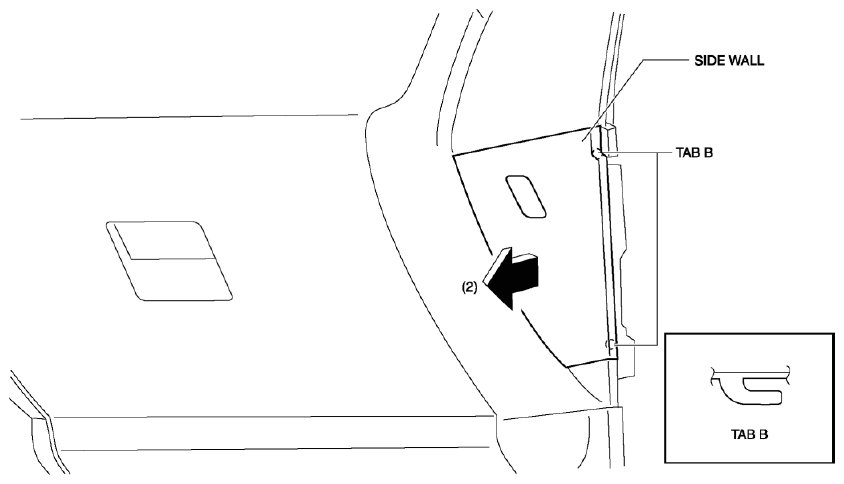

    Fig 2: Pulling Side Panel With Tabs B
    G08153210
  3. Remove the side panel.
  4. Install in the reverse order of removal.
