Discharge Headlight Control Module Removal/Installation

CAUTION:
  • Incorrect servicing of the discharge headlight control module could result in electrical shock. Read the service warnings before handling the discharge headlight control module. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
  4. Remove the screws.

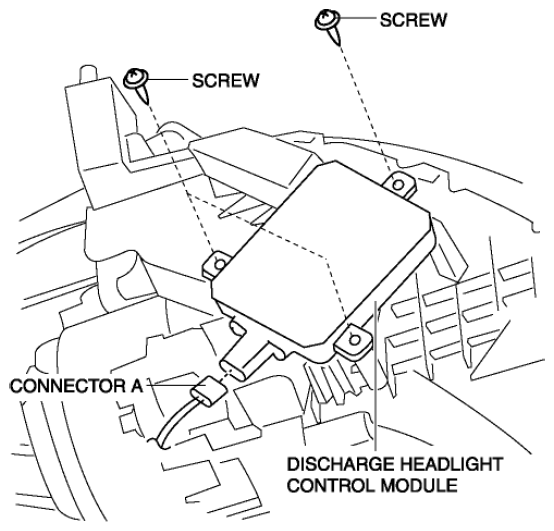

    Fig 1: Identifying Discharge Headlight Control Module, Connector A And Screws
    G08153305
  5. Disconnect connector A.
  6. Set aside the cover and disconnect connector B.

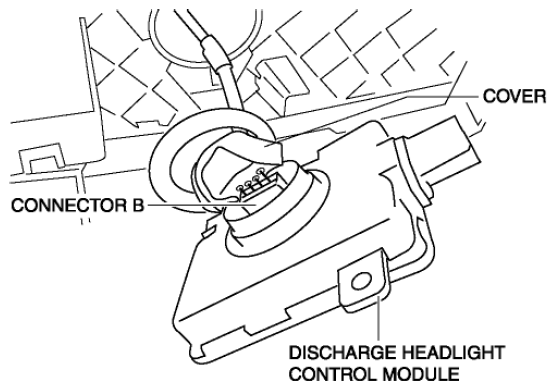

    Fig 2: Identifying Discharge Headlight Control Module, Cover And Connector B
    G08153306
  7. Remove the discharge headlight control module.
  8. Rotate the cover in the direction of the arrow shown in the figure to remove it.

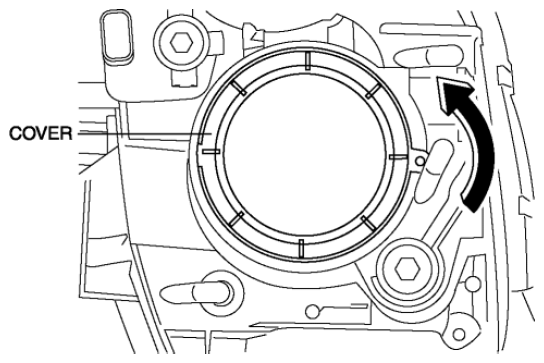

    Fig 3: Identifying Cover Rotating Direction
    G08153307
  9. Rotate the connector in the direction of the arrow shown in the figure to remove it.

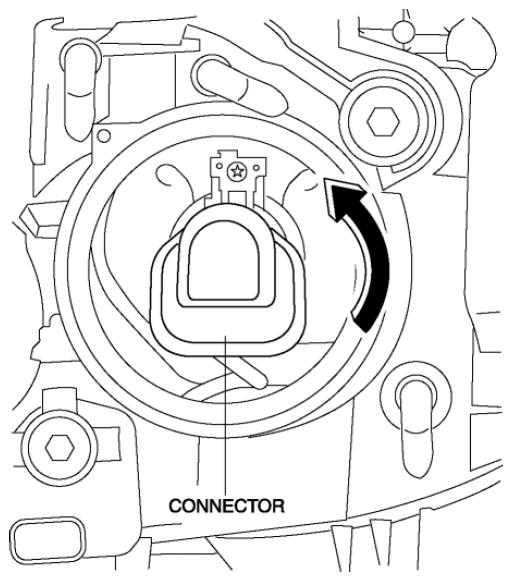

    Fig 4: Identifying Connector Rotating Direction
    G08153308
  10. Remove the short cord.

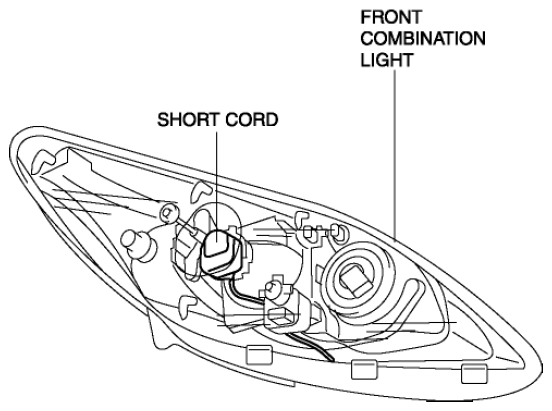

    Fig 5: Identifying Front Combination Light And Short Cord
    G08153309
  11. Install in the reverse order of removal.
