Rear Window Glass Installation: 4SD

  1. Remove sealant along the perimeter of the glass using a utility knife or scraper. (When reusing the glass)
  2. Clean and degrease an approx. 50 mm {2.0 in}  wide strip along the perimeter of the glass.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.
  4. Install the spacer and pins to the glass as shown in the figure.

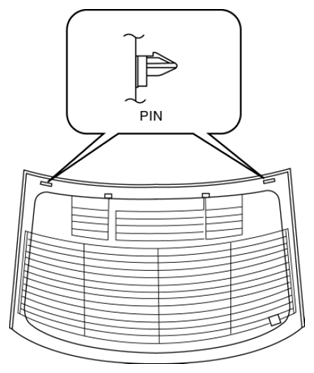

    Fig 1: Identifying Spacer And Pins
    G08158611
    NOTE:
    • When reusing the glass, align it with the alignment mark placed before the glass was removed.
  5. Install the rear window glass molding.

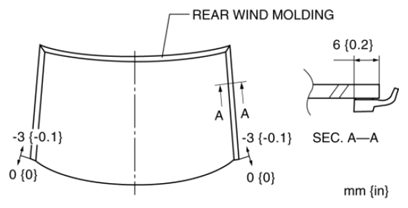

    Fig 2: Identifying Rear Window Glass Molding Dimensions
    G08158612
  6. Apply glass primer on the glass as shown in the figure then allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

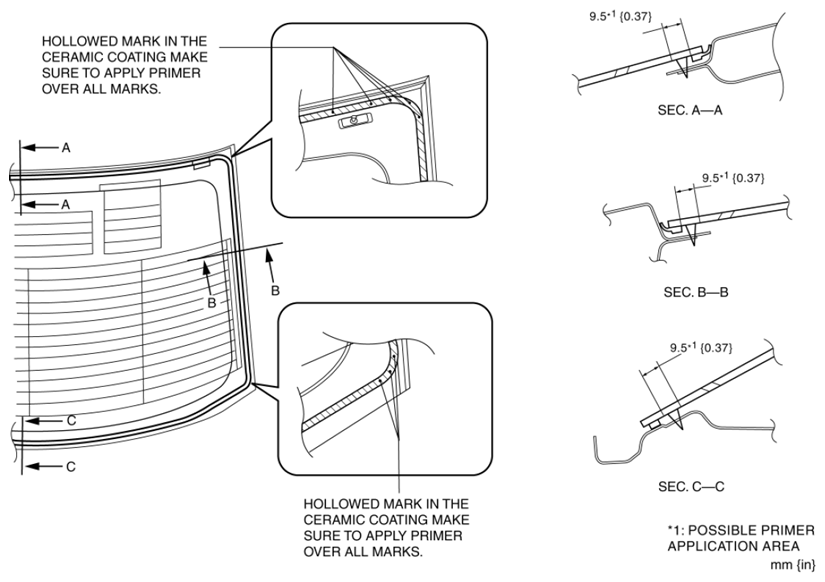

    Fig 3: Applying Primer To Hollowed Marks In Ceramic Coating
    G08158613
  7. Cut away the old sealant using a utility knife or scraper so that 1-2 mm {0.04-0.07 in}  thickness of sealant remains along the perimeter of the frame.
    Fig 4: Cutting Old Sealant Using Utility Knife
    G08158614
  8. Clean and degrease along the perimeter of the bonding area on the body.
  9. If the sealant has come off completely in any one place, apply some primer, and allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
  10. Apply body primer on the body as shown in the figure, then allow it to dry for approx. 30 min  .
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.

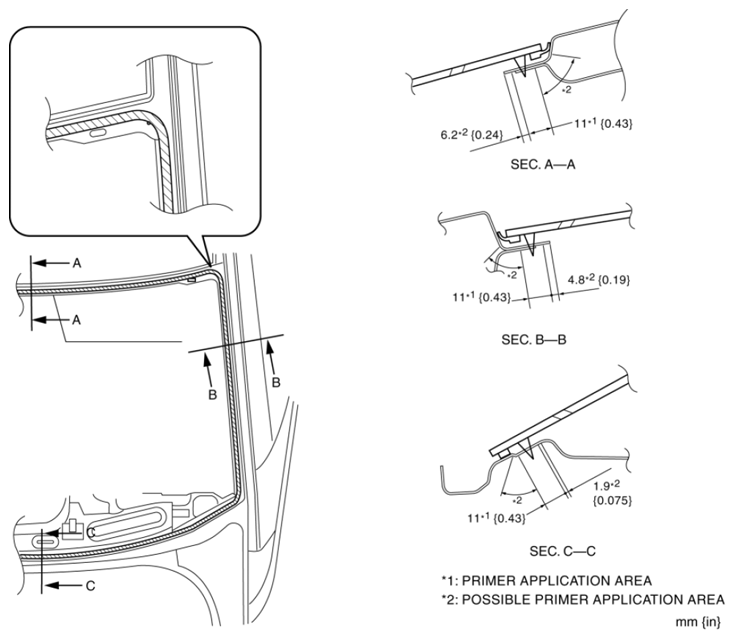

    Fig 5: Applying Primer To Hollowed Marks In Ceramic Coating
    G08158615
  11. Apply sealant to the area of the glass surface as shown in the figure.

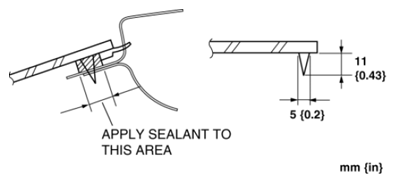

    Fig 6: Applying Sealant To Area Of Glass Surface
    G08158616
  12. Install the rear window glass.
  13. Verify that the gap at the upper and lower parts of the glass is within the specification shown in the figure, then press along the perimeter of the glass.

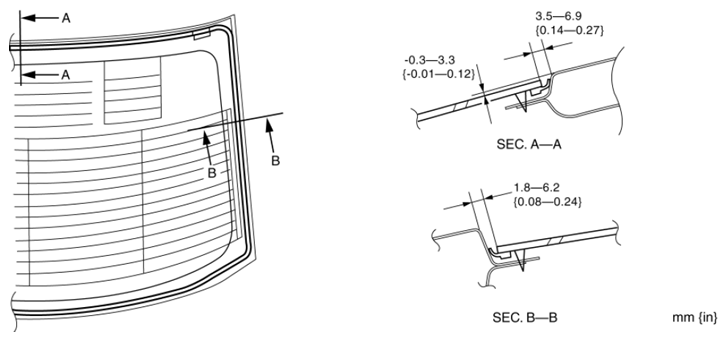

    Fig 7: Identifying Gap Upper And Lower Parts Of Glass
    G08158617
  14. Connect the filament connector.

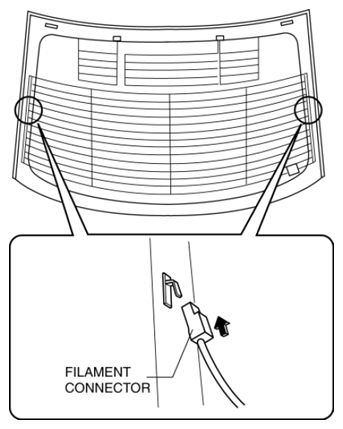

    Fig 8: Connecting Filament Connector
    G08158618
  15. Install the fasteners.

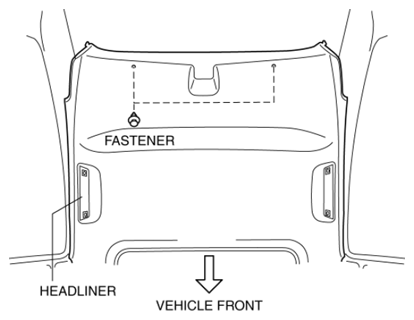

    Fig 9: Identifying Headliner And Fasteners
    G08158619
  16. Install the following parts:
    1. Tire house trims (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    2. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
    3. C-pillar trims (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    4. Rear side seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  17. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
  18. Allow the sealant to harden completely. Sealant hardening time: 24 h
