Auto-Dimming Mirror Installation

  1. Install the auto-dimming mirror onto the base.

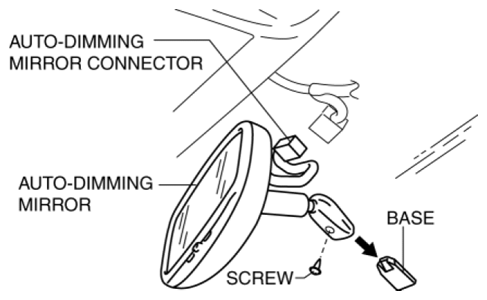

    Fig 1: Installing Auto-Dimming Mirror Onto Base
    G08158652
  2. Install the screw.
  3. Connect the auto-dimming mirror connector.
  4. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
