Rear Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove the under cover. (See REAR TRAILING LINK REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

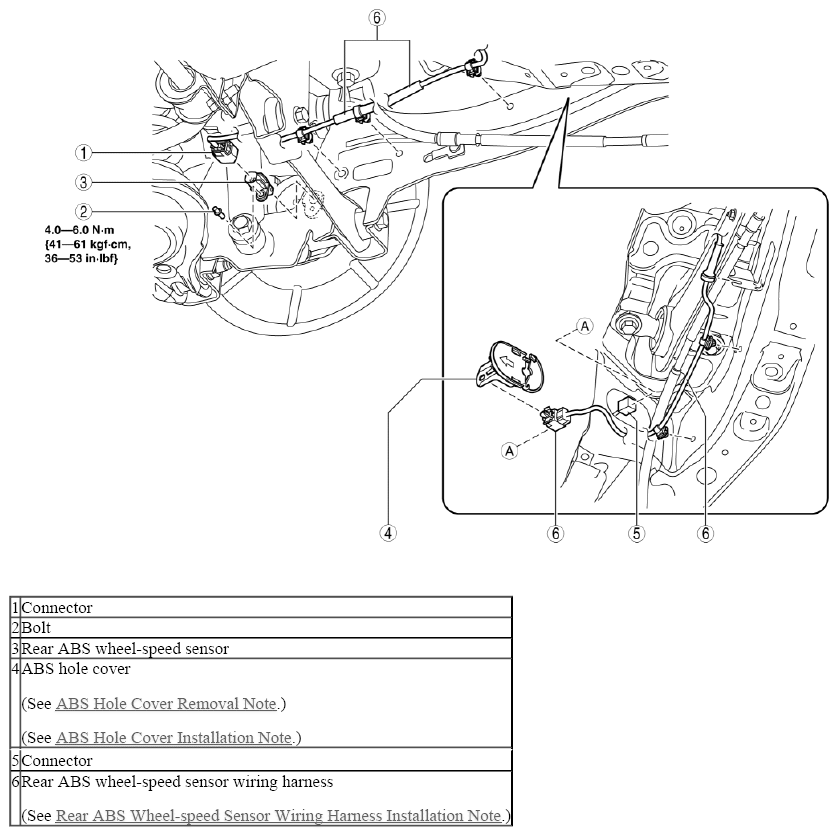

    Fig 1: Rear ABS Wheel-Speed Sensor, Wiring Harness, Hole Cover, Connectors And Bolt With Torque Specifications
    G08156063
