Request Switch Removal/Installation: Liftgate

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Remove the inboard light. (See INBOARD LIGHT REMOVAL/INSTALLATION .)
  3. Remove the screw.

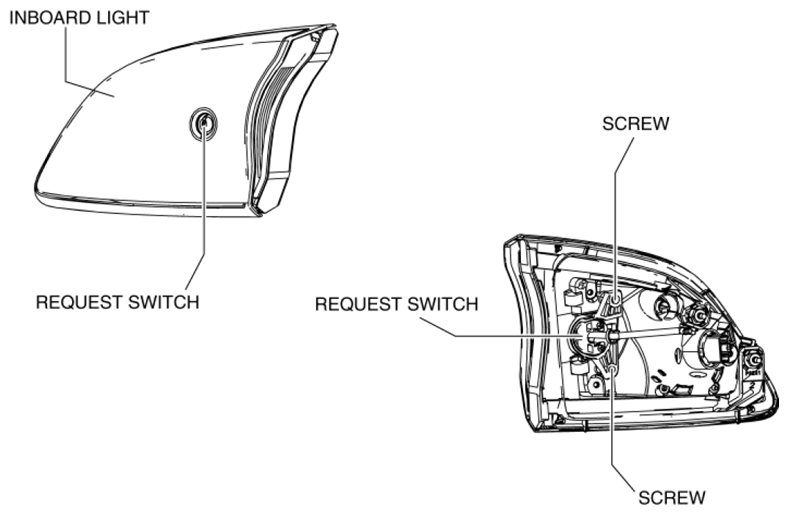

    Fig 1: Identifying Inboard Light, Request Switch And Screws
    G08158877
  4. Remove the request switch.
  5. Install in the reverse order of removal.
