Request Switch Inspection: Liftgate

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5] .) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
  2. Remove the inboard light. (See INBOARD LIGHT REMOVAL/INSTALLATION .)
  3. Remove the request switch (liftgate). (See REQUEST SWITCH REMOVAL/INSTALLATION .)
  4. Verify the continuity of request switch terminals A and B.

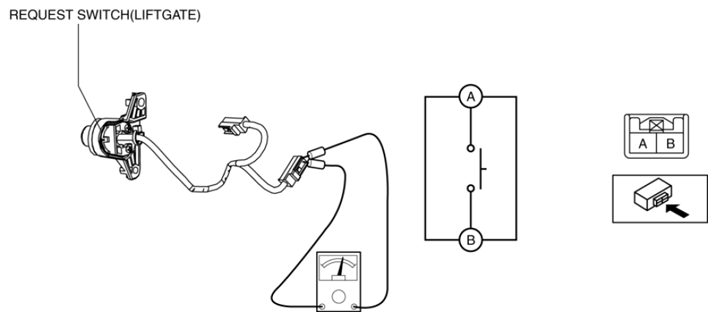

    Fig 1: Inspecting Continuity Between Request Switch Connector Terminal Using Ohmmeter - Liftgate
    G08158881
  5. Verify that the continuity is as indicated in the table.

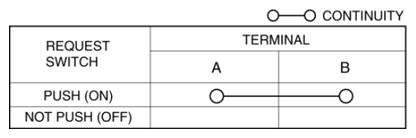

    Fig 2: Request Switch Terminal Continuity Chart - Liftgate
    G08158882
    • If not as indicated in the table, replace the request switch.
