Keyless Control Module Inspection
>>
Generated pulse (reference)
>>
Pattern 3
Pattern 3

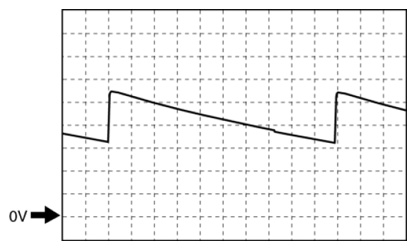

Fig 1: Generated Pulse (Reference) - Pattern 3
Terminal:
Door lock-link switch (driver's door): 4U (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
