Pattern 2

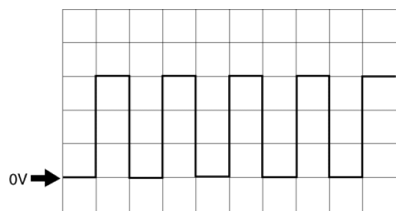

Fig 1: Generated Pulse (Reference) - Pattern 2

Terminal:
- Starter relay: 2F (+) ↔ body ground (-)
- Starter relay: 3B (+) ↔ body ground (-)
- Starter cut relay/TR switch: 3T (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
